Dear Sirs,
Our company supplies various units and machines for mining and oil and gas equipment, Russian manufacture and the CIS, such as:

- Roller cone Bits (Tricone drilling bits) from 3" to 26" inches (59 - 660,4 mm, AIDC code 111 to 837( Milled tooth, TCI) for rock of different hardness for: oil&gaz drilling, ore and mining industry,geological survey, construction and water well drilling.  Technical & Packing info download .

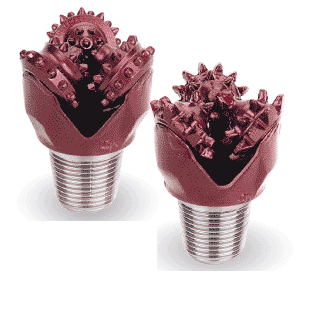

Tricone drill bits
Technical & Packing info:

Technical & Pacing Info
Size,in IADC Current Designation New Designation PIN, API REG RPM WOB, KN Rec. Make-Up Torque, KN.m Circulation: Net Weight, kg Gross Weight, kg Dimensions, cm Quantity of drill bits on one pallet, pcs
Type / Nozzle Quantity
26 111 V-K11T GRD111 7 5/8 600 - 40 100 - 400 46 - 54 Combined 4 711 820,5 (74X80X89)  1
26 115 VU-KL11TG GRDP115 7 5/8 300 - 40 170 - 460 46 - 54 Combined 4 705 814,5 (79X90X98) 1
26 215 VU-KL21TG GRDP215 7 5/8 300 - 40 290 - 520 46 - 54 Combined 4 670 780 (79X90X98) 1
26 515 VU-KL51XGG GRDP515 7 5/8 300 - 40 230 - 460 46 - 54 Combined 4 680 735 (73X83X92) 1
24 111 V-K11 GRD111 7 5/8 600 - 40 110 - 370 46 - 54 Combined 4 560 612 (68X74X84) 1
24 135 VU-KLS13TGP GRDP135 7 5/8 300 - 40 210 - 480 46 - 54 Combined 4 612 567 (74X83X85) 1
24 215 VU-KLS21TGP GRDP215 7 5/8 300 - 40 270 - 400 46 - 54 Combined 4 620 675 (73X83X92) 1
22 111 V-C11T GRD111 7 5/8 600 - 40 100 - 340 46 - 54 Central 1 389,3 423,8 (65X70X80) 1
22 515 VU-KL51XGG GRDP515 7 5/8 300 - 40 200 - 390 46 - 54 Combined 4 540 583 (82X72X84) 1
20 111 V-C11T GRD111 7 5/8 600 - 40 90 - 310 46 - 54 Central 1 340 377 (57X67X79) 1
20 111 V-KL11 GRD111 7 5/8 600 - 40 90 - 310 46 - 54 Combined 4 320 357 (57X67X79) 1
20 535 VU-KLS53XGG GRDP535 7 5/8 300 - 40 200 - 390 46 - 54 Combined 4 370 390 (57X67X79) 1
17 1/2 111 V-KL11T GRD111 7 5/8 600 - 40 80 - 270 46 - 54 Combined 4 204,7 232,2 (59X51X72) 2
17 1/2 115 VU-KLS11TG GRDP115 7 5/8 300 - 40 160 - 350 46 - 54 Combined 4 200 220 (59X51X72) 2
17 1/2 115 VU2-KLS11TGP GRDP115 7 5/8 300 - 40 160 - 350 46 - 54 Side 3 200 220 (59X51X72) 2
17 1/2 117 AU-KLS11TGP GRDP117  7 5/8 110 - 40 120 - 310 46 - 54 Combined 4 200,5 227,5 (59X51X72) 2
17 1/2 117 AUM2-KLS11TGP GRDP117  7 5/8 300 - 40 120 - 310 46 - 54 Combined 4 235 267 (53X63X72) 2
17 1/2 135 VU-KLS13TGP GRDP135 7 5/8 300 - 40 160 - 350 46 - 54 Combined 4 225,8 248,3 (59X51X72) 2
17 1/2 135 VU2-KLS13TGP GRDP135 7 5/8 300 - 40 160 - 350 46 - 54 Combined 4 270 302 (53X63X72) 2
17 1/2 137 AU-KLS13TGP GRDP137 7 5/8 110 - 40 160 - 350 46 - 54 Combined 4 219,8 244,4 (59X51X72) 2
17 1/2 137 AUM2-KLS13TGP GRDP137 7 5/8 110 - 40 160 - 350 46 - 54 Combined 4 270 302 (53X63X72) 2
17 1/2 214 VU2-KLS21TP GRDP214 7 5/8 300 - 40 190 - 350 46 - 54 Combined 4 240 272 (53X63X72) 2
17 1/2 215 VU-KLS21TG GRDP215 7 5/8 300 - 40 190 - 350 46 - 54 Combined 4 240 272 (59X51X72) 2
17 1/2 215 VU-KLS21TGP GRDP215 7 5/8 300 - 40 190 - 350 46 - 54 Combined 4 240 272 (53X63X72) 2
17 1/2 217 AUM2-KLS21TGP GRDP217 7 5/8 300 - 40 120 - 350 46 - 54 Combined 4 240 272 (53X63X72) 2
17 1/2 315 VU-KLS31TG GRDP315 7 5/8 300 - 40 200 - 400 46 - 54 Combined 4 210 237,5 (59X51X72) 2
17 1/2 415 VU-KLS41XPGG GRDP415 7 5/8 300 - 40 120 - 270 46 - 54 Combined 4 284 252 (59X51X72) 2
17 1/2 417 AUM2-KLS41ZPGG GRDP417 7 5/8 300 - 40 170 - 400 46 - 54 Combined 4 252 284 (59X51X72) 2
17 1/2 435 VU2-KLS43ZPW GRDP435 7 5/8 300 - 40 120 - 270 46 - 54 Combined 4 235 267 (53X63X72) 2
17 1/2 445 VU2-KLS44ZPW GRDP445 7 5/8 300 - 40 120 - 270 46 - 54 Combined 4 222,6 249,8 (53X63X72) 2
17 1/2 515 VU2-KLS51XP GRDP515 7 5/8 300 - 40 160 - 310 46 - 54 Combined 4 252 282 (53X63X72) 2
17 1/2 517 AUM2-KLS51XP GRDP517 7 5/8 300 - 40 170 - 400 46 - 54 Combined 4 252 282 (53X63X72) 2
17 1/2 525 VU2-KLS52XP GRDP525 7 5/8 300 - 40 160 - 310 46 - 54 Combined 4 244 276 (53X63X72) 2
17 1/2 527 AU-KLS52XPGD GRDP527 7 5/8 110 - 40 160 - 310 46 - 54 Combined 4 270 302 (53X63X72) 2
17 1/2 535 VU-KL53XG GRDP535 7 5/8 300 - 40 170 - 330 46 - 54 Combined 4 248 275,5 (59X51X72) 2
17 1/2 535 VU2-KLS53X GRDP535 7 5/8 300 - 40 190 - 350 46 - 54 Combined 4 235 267 (53X63X72) 2
17 1/2 545 VU-KLS54ZGG GRDP545 7 5/8 300 - 40 230 - 390 46 - 54 Combined 4 270 302 (53X63X72) 2
17 1/2 625 VU-KLS62XGG GRDP625 7 5/8 300 - 40 190 - 370 46 - 54 Combined 4 240 267,5 (59X51X72) 2
16 115 VU-KLSP11TG GRDP115 7 5/8 300 - 40 110 - 280 46 - 54 Combined 4 183,1 208,6 (45X53X67) 2
16 135 VU-KLSP13TG GRDP135 7 5/8 300 - 40 140 - 320 46 - 54 Combined 4 200 218 (45X53X67) 2
16 135 VU-KNLSDPD13TGD GRDP135 7 5/8 300 - 40 140 - 320 46 - 54 Combined 4 200 218 (45X52X67) 2
16 415 VU-KNLSD41XEGD GRDP415 7 5/8 300 - 40 110 - 250 46 - 54 Combined 4 193 200 (50X57X72) 2
16 435 VU-KLS43XE GRDP435 7 5/8 300 - 40 110 - 250 46 - 54 Combined 4 190,7 196,4 (50X57X72) 2
16 435 VU-KNLSD43XGD GRDP435 7 5/8 300 - 40 110 - 250 46 - 54 Combined 4 190,7 196,4 (50X57X72) 2
16 437 AUM2-KLS43X GRDP437 7 5/8 300 - 40 110 - 250 46 - 54 Combined 4 217,8 193,5 (53X63X72) 2
15 1/2 115 VU-KL11TG GRDP115 7 5/8 300 - 40 100 - 280 46 - 54 Combined 4 150,5 156,2 (41X41X54) 2
15 1/2 135 VU2-KLS13TGP GRDP135 7 5/8 300 - 40 100 - 280 46 - 54 Combined 4 150,5 156,2 (41X41X54) 2
15 1/2 215 VU-KL21TG GRDP215 7 5/8 300 - 40 170 - 310 46 - 54 Combined 4 150,5 156,2 (41X41X54) 2
15 1/2 215 VU-K21TG GRDP215 7 5/8 300 - 40 170 - 310 46 - 54 Combined 4 152,7 158,4 (41X41X54) 2
15 1/2 313 V-K31G GRD313 7 5/8 600 470 46 - 54 Side 3 177,5 183,2 (42X42X67) 2
15 1/2 315 VU-KL31G GRDP315 7 5/8 300 - 40 210 - 340 46 - 54 Combined 4 153,5 159,2 (41X41X54) 2
15 1/2 545 VU-K54X GRDP545 7 5/8 300 - 40 170 - 290 46 - 54 Combined 4 152 156,4 (41X41X66) 2
15 1/2 625 VU-KLS62X GRDP625 7 5/8 300 - 40 210 - 380 46 - 54 Combined 4 163 167,4 (41X41X66) 2
14 3/4 427 AU-KLS42XP MTR427 7 5/8 110 - 40 100 - 230 46 - 54 Combined 4 137 155 (45X52X67) 2
14 3/4 535 VU-KLS53X TCNP535 7 5/8 300 - 40 160 - 260 46 - 54 Combined 4 145 149,4 (41X41X66) 2
14 3/4 625 VU-KLS62X TCNP625 7 5/8 300 - 40 120 - 310 46 - 54 Combined 4 150 154,4 (41X41X66) 2
13 3/4 115 VU-11TG MTR115 6 5/8 300 - 40 180 - 310 38 - 43 Side 3 97,5 103,5 (37X37X59) 6
13 3/4 211 V-C21 STD211 6 5/8 600 225 - 450 38 - 43 Central 1 97,5 103,5 (37X37X59) 6
13 3/4 311 V-C31 STD311 6 5/8 600 450 38 - 43 Central 1 97,7 103,7 (37X37X59) 6
13 3/4 545 VU-KLS54XG TCNP545 6 5/8 300 - 40 180 - 310 38 - 43 Combined 4 127 128 (41X41X63) 6
13 3/4 625 VU-KLS62X TCNP625 6 5/8 300 - 40 150 - 280 39 - 43 Combined 4 121,5 125,9 (41X41X66) 6
13 3/8 535 VU-S53X TCNP535 6 5/8 300 - 40 150 - 230 38 - 43 Side 3 124,8 129,2 (41X41X66) 6
13 3/8 535 VU-KLS53X TCNP535 6 5/8 300 - 40 150 - 270 38 - 43 Combined 4 127,3 130,5 (35X35X52) 6
12 1/4 115 VU-KLS11TG MTR115 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 88 92,2 (34X34X52) 6
12 1/4 117 AUL-KLS11TG MTRP117 6 5/8 180 - 40 80 - 250 38 - 43 Combined 4 90 94,2 (34X34X53) 6
12 1/4 117 AUM2-KLS11TGP MTRP117 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 86 93,6 (36X34X49) 6
12 1/4 127 AUM2-KLS12TGP MTRP127 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 90 94,2 (35X35X51) 6
12 1/4 135 VU2-KLS13TG MTR135 6 5/8 300 - 40 110 - 270 38 - 43 Combined 4 83 87,5 (35X35X51) 6
12 1/4 137 AUL-KLS13TG MTR137 6 5/8 180 - 40 110 - 270 38 - 43 Combined 4 85,2 89,4 (34X34X54) 6
12 1/4 215 VU-KLS21TG MTR215 6 5/8 300 - 40 140 - 270 38 - 43 Combined 4 83 85,8 (34X34X54) 6
12 1/4 215 VU2-KLS21TG MTR215 6 5/8 300 - 40 140 - 330 38 - 43 Combined 4 82,2 86,4 (35X35X52) 6
12 1/4 235 VU-KLS23G MTR235 6 5/8 300 - 40 160 - 330 38 - 43 Combined 4 83 87,2 (35X35X51) 6
12 1/4 315 NU-31G MTR315 6 5/8 300 - 40 190 - 350 38 - 43 Side 3 100 104,2 (34X34X54) 6
12 1/4 415 VU-LS41XP MTR415 6 5/8 300 - 40 80 - 250 38 - 43 Side 3 87,6 92 (35X35X53) 6
12 1/4 417 AUL-LS41X MTR417 6 5/8 180 - 40 80 - 250 38 - 43 Side 3 100 104,2 (35X35X53) 6
12 1/4 417 AUL-KLS41XP MTR417 6 5/8 180 - 40 80 - 250 38 - 43 Combined 4 90,2 94,4 (34X34X54) 6
12 1/4 417 AUL-RKLS41XP MTR417 6 5/8 300 - 40 50 - 230 38 - 43 Combined 4 90,9 95,1 (35X35X51) 6
12 1/4 417 AUL-KLS41XPEGD MTR417 6 5/8 180 - 40 80 - 250 38 - 43 Combined 4 89,1 93,3 (34X34X54) 6
12 1/4 427 AUL-KLS42XPW MTR427 6 5/8 180 - 40 110 - 250 38 - 43 Combined 4 92,8 97 (34X34X54) 6
12 1/4 435 VU2-KLS43XGG MTR435 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 90 94,2 (34X34X51) 6
12 1/4 437 AUL2-KLS43XPW MTRP437 6 5/8 180 - 40 80 - 250 38 - 43 Combined 4 93,6 97,8 (35X35X51) 6
12 1/4 437 AUL-KLSD43XWDGDF MTRP437 6 5/8 180 - 40 80 - 250 38 - 43 Combined 4 100 104,2 (35X35X53) 6
12 1/4 437 AUL-RKLSD43XWDGDF MTRP437 6 5/8 300 - 40 90 - 230 38 - 43 Combined 4 93,8 98 (34X34X54) 6
12 1/4 437 AUM2-KLS43XPW MTRP437 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 100 104,2 (35X35X53) 6
12 1/4 447 AUL-KLS44X MTRP447 6 5/8 180 - 40 80 - 250 38 - 43 Combined 4 92,8 97 (34X34X54) 6
12 1/4 447 AUL2-LS44XPW MTRP447 6 5/8 180 - 40 80 - 250 38 - 43 Side 3 91,8 96 (34X34X54) 6
12 1/4 447 AUM2-KLS44XP MTRP447 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 100 104,2 (35X35X53) 6
12 1/4 517 AUL-LS51XPW MTRP517 6 5/8 180 - 40 110 - 250 38 - 43 Side 3 95,5 99,7 (34X34X54) 6
12 1/4 517 AUL-KLS51XPW MTRP517 6 5/8 180 - 40 110 - 250 38 - 43 Combined 4 93,4 97,6 (34X34X54) 6
12 1/4 517 AUM2-KLS51XPW MTRP517 6 5/8 300 - 40 110 - 250 38 - 43 Combined 4 97 101,2 (35X35X52) 6
12 1/4 527 AUL-LS52YGG MTR527 6 5/8 180 - 40 110 - 250 38 - 43 Side 3 97,5 101,7 (35X35X51) 6
12 1/4 535 VU-KLS53X MTR535 6 5/8 300 - 40 110 - 220 38 - 43 Combined 4 98,4 101,2 (34X34X53) 6
12 1/4 537 AUL-LS53XGG MTRP537 6 5/8 180 - 40 140 - 270 38 - 43 Side 3 96,2 100,4 (34X34X54) 6
12 1/4 537 AUL2-KLS53XGG MTRP537 6 5/8 180 - 40 140 - 270 38 - 43 Combined 4 95,9 100,1 (34X34X54) 6
12 1/4 537 AUL2-KLS53XEGG MTRP537 6 5/8 180 - 40 140 - 270 38 - 43 Combined 4 96 100,2 (34X34X54) 6
12 1/4 537 AUM2-KLS53XGG MTRP537 6 5/8 300 - 40 140 - 270 38 - 43 Combined 4 98,3 100 (35X35X51) 6
12 1/4 537 AUM2-KLS53XEGG MTRP537 6 5/8 300 - 40 140 - 270 38 - 43 Combined 4 97 101,2 (35X35X53) 6
12 1/4 547 AUL-LS54YGG MTR547 6 5/8 180 - 40 160 - 300 38 - 43 Side 3 93,9 98,1 (35X35X51) 6
12 1/4 617 AUP-61X MTR617 6 5/8 110 - 40 140 - 280 38 - 43 Side 3 100 104,2 (35X35X53) 6
12 1/4 617 AUL-LS61XGG MTR617 6 5/8 180 - 40 160 - 330 38 - 43 Side 3 95,5 99,1 (35X35X51) 6
12 1/4 625 VU-KLS62Y MTR625 6 5/8 300 - 40 80 - 250 38 - 43 Combined 4 91,5 94,3 (35X35X51) 6
12 1/4 637 AUL-LS63XGG MTR637 6 5/8 180 - 40 160 - 330 38 - 43 Side 3 95,5 99,1 (35X35X51) 6
12 1/4 737 AUL-LS73YGG MTR737 6 5/8 180 - 40 190 - 350 38 - 43 Side 3 95 98,6 (35X35X51) 6
11 5/8 121 V-12 STM121 6 5/8 400 - 60 180 - 300 38 - 43 Side 3 76,2 79,5 (32X32X49) 6
11 5/8 211 V-21 STM211 6 5/8 600 - 40 100 - 260 38 - 43 Side 3 75 78,3 (32X32X51) 6
11 5/8 535 NU-K53X MTR535 6 5/8 300 - 40 130 - 260 38 - 43 Combined 4 90 93,3 (32X32X51) 6
11 5/8 543 V-KB54X STM543 6 5/8 600 - 40 130 - 280 38 - 43 Combined 4 86 89,3 (32X32X51) 6
11 5/8 543 V-54X STM543 6 5/8 600 - 40 130 - 280 38 - 43 Combined 4 86 89,3 (32X32X51) 6
11 5/8 545 VU-LS54X MTR545 6 5/8 300 - 40 60 - 210 38 - 43 Side 3 83,7 86,5 (34X34X53) 6
11 5/8 545 NU-54X MTR545 6 5/8 300 - 40 130 - 260 38 - 43 Side 3 83,7 86,5 (34X34X53) 6
11 5/8 625 VU-LS62X MTR625 6 5/8 300 - 40 60 - 210 38 - 43 Side 3 84 86,8 (34X34X53) 6
11 5/8 627 AUL-LS62YP MTRP627 6 5/8 180 - 40 160 - 310 38 - 43 Side 3 90 93,3 (33X33X50) 6
11 5/8 627 AUM2-LS62YGGP MTRP627 6 5/8 280 - 40 160 - 310 38 - 43 Side 3 90 93,3 (33X33X50) 6
11 117 AUL-LS11TG MTR117 6 5/8 180 - 40 70 - 220 38 - 43 Side 3 78 81 (30X30X50) 6
10 5/8 517 AUL-LS51X MTR517 6 5/8 180 - 40 90 - 210 38 - 43 Side 3 70 72 (29X29X51) 6
10 5/8 547 AU-LS54X MTR547 6 5/8 300 - 40 90 - 210 39 - 43 Side 3 69 72 (30X30X46) 6
9 7/8 117 AUL-KLS11TG MTRP117 6 5/8 180 - 40 70 - 200 38 - 43 Side 4 60 62,7 (28X28X46) 16 (8 X 2)
9 7/8 417 AUL-LS41X MTR417 6 5/8 180 - 40 70 - 200 38 - 43 Side 3 60,5 63,2 (28X28X44) 16 (8 X 2)
9 7/8 422 V-ALS42Y AIR422 6 5/8 115 - 60 40 - 150 38 - 43 Side 3 59,4 62,1 (27X27X48) 16 (8 X 2)
9 7/8 535 NU-LS53X MTR535 6 5/8 300 - 40 110 - 220 38 - 43 Side 3 64 66,7 (28X28X44) 16 (8 X 2)
9 7/8 535 NU-LS53XP MTR535 6 5/8 300 - 40 110 - 220 38 - 43 Side 3 64 66,7 (28X28X44) 16 (8 X 2)
9 7/8 545 VU-L54X MTR545 6 5/8 300 - 40 70 - 170 38 - 43 Side 3 61 63,4 (27X27X46) 16 (8 X 2)
9 7/8 617 AUL-LS61X MTR617 6 5/8 110 - 40 130 - 260 38 - 43 Side 3 60,5 63,2 (28X28X44) 16 (8 X 2)
9 7/8 622 V-ALS62Y AIR622 6 5/8 115 - 60 80 - 210 38 - 43 Side 3 61,5 64,2 (27X27X48) 16 (8 X 2)
9 5/8 437 AUL-LS43XP MTR437 6 5/8 180 - 40 60 - 190 38 - 43 Side 3 58 60,7 (27X27X43) 16 (8 X 2)
9 5/8 535 NU-53X MTR535 6 5/8 300 - 40 110 - 210 38 - 43 Side 3 57,2 59 (27X27X43) 16 (8 X 2)
9 622 V-ALS62Y AIR622 4 1/2 115 - 60 70 - 190 16 - 22 Side 3 39,8 41,2 (25X25X43) 16 (8 X 2)
9 632 V-ALSP63Y AIR632 4 1/2 115 - 60 80 - 190 16 - 22 Side 3 42,5 45,3 (25X25X41) 16 (8 X 2)
8 3/4 117 AU-LS11TG MTR117 4 1/2 180 - 40 120 - 200 16 - 22 Side 3 33,4 34,8 (25X25X43) 24 (12 X 2)
8 3/4 215 VU-NLS21TG MTR215 4 1/2 300 - 40 100 - 230 16 - 22 Side 3 33,1 34,5 (25X25X43) 24 (12 X 2)
8 3/4 417 AUL-LS41X MTR417 4 1/2 180 - 40 60 - 180 16 - 22 Side 3 38 39,4 (25X25X41) 24 (12 X 2)
8 3/4 435 VU-NLS43Z MTR435 4 1/2 300 - 40 60 - 180 16 - 22 Side 3 36,3 37,7 (25X25X43) 24 (12 X 2)
8 3/4 437 AUL-LS43X MTR437 4 1/2 180 - 40 60 - 180 16 - 22 Side 3 39 40,4 (25X25X39) 24 (12 X 2)
8 3/4 513 V-QN51X STM513 4 1/2 600 - 40 60 - 180 16 - 22 Side 2 34,3 35,7 (25X25X43) 24 (12 X 2)
8 1/2 115 NU-LS11TG MTR115 4 1/2 300 - 40 60 - 170 16 - 22 Side 3 33,9 35,3 (25X25X41) 24 (12 X 2)
8 1/2 117 AUL-KLS11TG MTR117 4 1/2 180 - 40 60 - 170 16 - 22 Combined 4 32,4 33,8 (25X25X41) 24 (12 X 2)
8 1/2 117 AUL-KLS11TGP MTR117 4 1/2 280 - 40 40 - 230 16 - 22 Combined 4 33 34,4 (25X25X39) 24 (12 X 2)
8 1/2 117 AUM-KLSP11TG MTRP117 4 1/2 300 - 40 60 - 170 16 - 22 Combined 4 33 34,5 (25X25X43) 24 (12 X 2)
8 1/2 117 AUM-KLS11ETGP MTRP117 4 1/2 300 - 40 60 - 170 16 - 22 Combined 4 32,4 33,8 (25X25X43) 24 (12 X 2)
8 1/2 127 AUM-KLS12TGP MTRP117 4 1/2 300 - 40 60 - 170 16 - 22 Combined 4 34,9 36,3 (25X25X39) 24 (12 X 2)
8 1/2 135 NU-LS13TG MTR135 4 1/2 300 - 40 80 - 190 16 - 22 Side 3 35 36,4 (25X25X39) 24 (12 X 2)
8 1/2 135 VU-LS13TG MTR135 4 1/2 300 - 40 80 - 190 16 - 22 Side 3 35 36,4 (25X25X39) 24 (12 X 2)
8 1/2 136 AUL-LS13 MTR136 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 137 AUL-KLS13TG MTRP137 4 1/2 180 - 40 100 - 190 16 - 22 Combined 4 32,9 34,3 (25X25X43) 24 (12 X 2)
8 1/2 214 VU-NLS21 MTR214 4 1/2 300 - 40 90 - 230 16 - 22 Side 3 35 36,4 (25X25X39) 24 (12 X 2)
8 1/2 215 VU-KNLS21TG MTR215 4 1/2 300 - 40 90 - 230 16 - 22 Combined 4 33,3 35 (25X25X43) 24 (12 X 2)
8 1/2 215 NUM2-KNLS21TG MTR215 4 1/2 300 - 40 90 - 230 16 - 22 Combined 4 35 36,4 (25X25X39) 24 (12 X 2)
8 1/2 217 AUL-KLS21TG MTR217 4 1/2 180 - 40 90 - 230 16 - 22 Combined 4 33,7 35,1 (25X25X43) 24 (12 X 2)
8 1/2 435 VU-NLS43Z MTR435 4 1/2 300 - 40 60 - 170 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 435 VU-NLS43ZWP MTR435 4 1/2 300 - 40 60 - 170 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 437 AUL-LS43X MTRP437 4 1/2 180 - 40 60 - 170 16 - 22 Side 3 36,2 37,9 (25X25X39) 24 (12 X 2)
8 1/2 437 AUL-RKLSD43XWDGDF MTRP437 4 1/2 300 - 40 60 - 160 16 - 22 Combined 4 35,8 37,2 (25X25X43) 24 (12 X 2)
8 1/2 437 AUL-LS43ZP MTRP437 4 1/2 180 - 40 60 - 170 16 - 22 Side 3 36,2 37 (25X25X43) 24 (12 X 2)
8 1/2 437 AUM-KLSD43XPDEWDGDF MTRP437 4 1/2 300 - 40 60 - 170 16 - 22 Combined 4 36 37,4 (25X25X43) 24 (12 X 2)
8 1/2 437 AUM2-KLSP43XPE MTRP437 4 1/2 300 - 40 60 - 170 16 - 22 Combined 4 39,6 41,3 (25X25X39) 24 (12 X 2)
8 1/2 437 AUM2-KLSP43ZP MTRP437 4 1/2 280 - 40 40 - 230 16 - 22 Combined 4 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 437 AUM2-KLSP43XPEWDGD MTRP437 4 1/2 280 - 40 40 - 230 16 - 22 Combined 4 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 513 V-N51X STM513 4 1/2 400 - 80 150 - 250 16 - 22 Side 2 39 40,4 (25X25X43) 24 (12 X 2)
8 1/2 517 AUL-LS51X MTRP517 4 1/2 180 - 40 80 - 170 16 - 22 Side 3 36,3 37,8 (25X25X43) 24 (12 X 2)
8 1/2 517 AUM-LS51XPW MTRP517 4 1/2 300 - 40 80 - 170 16 - 22 Side 3 36,5 37,9 (25X25X43) 24 (12 X 2)
8 1/2 517 AUM2-LSP51X MTRP517 4 1/2 300 - 40 80 - 170 16 - 22 Side 3 38,5 39,9 (25X25X43) 24 (12 X 2)
8 1/2 517 AUM2-LSP51XF MTRP517 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 36 37,4 (25X25X39) 24 (12 X 2)
8 1/2 517 AUM2-LS51XPW MTRP517 4 1/2 300 - 40 80 - 170 16 - 22 Side 3 37 38,4 (25X25X43) 24 (12 X 2)
8 1/2 527 AUM-LS52XP MTRP527 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 36 37,4 (25X25X41) 24 (12 X 2)
8 1/2 537 AUL-LS53X MTRP537 4 1/2 180 - 40 90 - 190 16 - 22 Side 3 36,5 38 (25X25X39) 24 (12 X 2)
8 1/2 537 AUM2-LSP53XE MTRP537 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 537 AUM2-LSP53XP MTRP537 4 1/2 280 - 40 90 - 190 16 - 22 Side 3 40,1 42,3 (25X25X39) 24 (12 X 2)
8 1/2 537 AUM2-LSP53XPW MTRP537 4 1/2 280 - 40 90 - 190 16 - 22 Side 3 40,7 42,3 (25X25X39) 24 (12 X 2)
8 1/2 547 AUL-LSP54Y MTR547 4 1/2 300 - 40 110 - 210 16 - 22 Side 3 40 41,7 (25X25X43) 24 (12 X 2)
8 1/2 547 AUM-LSP54XPE MTRP547 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 547 AUM2-LSP54X MTRP547 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 617 AUL-LS61X MTRP617 4 1/2 150 - 60 130 - 240 16 - 22 Side 3 37 38,4 (25X25X43) 24 (12 X 2)
8 1/2 617 AUL-LS61YP MTRP617 4 1/2 150 - 60 130 - 240 16 - 22 Side 3 37 38,4 (25X25X43) 24 (12 X 2)
8 1/2 617 AUL-LS61XP MTRP617 4 1/2 180 - 40 110 - 230 16 - 22 Side 3 36,2 37,2 (25X25X43) 24 (12 X 2)
8 1/2 617 AUL-LS61XPE MTRP617 4 1/2 180 - 40 110 - 230 16 - 22 Side 3 35,9 37,3 (25X25X43) 24 (12 X 2)
8 1/2 617 AUM2-LSP61X MTRP617 4 1/2 300 - 40 110 - 230 16 - 22 Side 3 40,1 42 (25X25X43) 24 (12 X 2)
8 1/2 617 AUM2-LSP61XP MTRP617 4 1/2 300 - 40 110 - 230 16 - 22 Side 3 40,1 42 (25X25X43) 24 (12 X 2)
8 1/2 625 NU-62X MTR625 4 1/2 300 - 40 110 - 230 16 - 22 Side 3 36,8 38,2 (25X25X43) 24 (12 X 2)
8 1/2 627 AU-LSP62X MTR627 4 1/2 180 - 40 120 - 200 16 - 22 Side 3 36,8 38,2 (25X25X39) 24 (12 X 2)
8 1/2 627 AUM2-LSP62XGGD MTRP627 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 1/2 637 AUM-LSP63YGG MTRP637 4 1/2 300 - 40 110 - 210 16 - 22 Side 3 36,4 37,9 (25X25X43) 24 (12 X 2)
8 1/2 637 AUM2-LSP63YGG MTRP637 4 1/2 300 - 40 110 - 230 16 - 22 Side 3 37 38,4 (25X25X43) 24 (12 X 2)
8 1/2 637 AUL-LS63Y MTRP637 4 1/2 180 - 40 110 - 230 16 - 22 Side 3 36,4 37,9 (25X25X43) 24 (12 X 2)
8 1/2 637 AUL-LSP63XY MTRP637 4 1/2 300 - 40 100 - 190 16 - 22 Side 3 36,4 37 (25X25X43) 24 (12 X 2)
8 3/8 117 AUM-LS11ETG MTRP117 4 1/2 300 - 40 70 - 180 16 - 22 Side 3 37 38,1 (25X25X39) 24 (12 X 2)
8 3/8 136 AUM2-LS13TP MTRP136 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X39) 24 (12 X 2)
8 3/8 216 AUL-LS21T MTR216 4 1/2 180 - 40 90 - 210 16 - 22 Side 3 32,1 33,5 (25X25X43) 24 (12 X 2)
8 3/8 517 AUL-LS51X MTRP517 4 1/2 180 - 40 70 - 170 16 - 22 Side 3 37 38,4 (25X25X41) 24 (12 X 2)
8 3/8 517 AUM2-LS51XP MTRP517 4 1/2 300 - 40 70 - 170 16 - 22 Side 3 34,8 36,2 (25X25X43) 24 (12 X 2)
8 3/8 537 AUM2-LS53XP MTRP537 4 1/2 300 - 40 90 - 190 16 - 22 Side 3 36,1 37,5 (25X25X43) 24 (12 X 2)
8 3/8 547 AUL-LS54XP MTR547 4 1/2 180 - 40 110 - 200 16 - 22 Side 3 36 37,4 (25X25X41) 24 (12 X 2)
8 3/8 627 AUM2-LSP62Y MTRP627 4 1/2 280 - 40 40 - 230 16 - 22 Side 3 37 38,4 (25X25X41) 24 (12 X 2)
8 3/8 737 AUM2-LSP73YGG MTRP737 4 1/2 300 - 40 130 - 240 16 - 22 Side 3 37 38,4 (25X25X41) 24 (12 X 2)
8 3/8 837 AUM2-LSP83YGG MTRP837 4 1/2 300 - 40 130 - 240 16 - 22 Side 3 36 37,4 (25X25X41) 24 (12 X 2)
8 1/4 136 AUM-LS13TP MTRP136 4 1/2 300 - 40 70 - 180 16 - 22 Side 3 37 38,1 (23X23X40) 24 (12 X 2)
8 1/4 137 AUM-LS13TGP MTRP137 4 1/2 300 - 40 70 - 180 16 - 22 Side 3 37 38,1 (23X23X40) 24 (12 X 2)
8 1/4 517 AUM-LS51XP MTRP517 4 1/2 300 - 40 70 - 170 16 - 22 Side 3 37 38,1 (23X23X40) 24 (12 X 2)
8 1/4 537 AUM-LS53XP MTRP537 4 1/2 300 - 40 90 - 180 16 - 22 Side 3 37 38,1 (23X23X40) 24 (12 X 2)
8 1/4 617 AUM-LS61XP MTRP617 4 1/2 300 - 40 110 - 220 16 - 22 Side 3 37 38,1 (23X23X40) 24 (12 X 2)
7 7/8 117 AUL-LS11TG MTR117 4 1/2 180 - 40 50 - 180 16 - 22 Side 3 32 35 (23X23X40) 30 (15 X 2)
7 7/8 417 AUL-LS41X MTR417 4 1/2 180 - 40 50 - 180 16 - 22 Side 3 33 34,1 (23X23X40) 30 (15 X 2)
7 7/8 437 AUL-LS43X MTR437 4 1/2 180 - 40 50 - 160 16 - 22 Side 3 33 34,1 (23X23X40) 30 (15 X 2)
7 7/8 517 AU-LS51X MTR517 4 1/2 110 - 40 70 - 160 16 - 22 Side 3 35 36,1 (23X23X40) 30 (15 X 2)
7 7/8 517 AUL-LS51X MTR517 4 1/2 180 - 40 70 - 160 16 - 22 Side 3 31 32,1 (23X23X37) 30 (15 X 2)
7 7/8 527 AUL-LS52Y MTR527 4 1/2 180 - 40 60 - 150 16 - 22 Side 3 31 32,1 (23X23X40) 30 (15 X 2)
7 7/8 535 NU-LS53X TCNP535 4 1/2 300 - 40 60 - 170 16 - 22 Side 3 32,6 34,1 (23X23X40) 30 (15 X 2)
7 7/8 537 AUL-LS53Y MTR537 4 1/2 180 - 40 90 - 180 16 - 22 Side 3 31 32,1 (23X23X40) 30 (15 X 2)
7 7/8 547 AUL-LS54Y MTR547 4 1/2 180 - 40 110 - 190 16 - 22 Side 3 33 34,1 (23X23X40) 30 (15 X 2)
7 7/8 625 NU-LS62X MTRP625 4 1/2 300 - 40 60 - 170 16 - 22 Side 3 31,8 33,3 (25X25X41) 30 (15 X 2)
7 7/8 627 AUL-LS62X MTR627 4 1/2 180 - 40 110 - 210 16 - 22 Side 3 33 34,1 (23X23X37) 30 (15 X 2)
7 7/8 637 AUL-LS63Y MTR637 4 1/2 180 - 40 110 - 210 16 - 22 Side 3 33 34,1 (23X23X40) 30 (15 X 2)
7 1/2 517 AU-51X SLHP517 4 1/2 110 - 40 70 - 150 16 - 22 Side 3 35 36,1 (22X22X37) 30 (15 X 2)
7 1/2 517 AUL-LS51X MTR517 4 1/2 180 - 40 70 - 150 16 - 22 Side 3 30 31 (23X23X37) 30 (15 X 2)
7 1/2 547 AUL-LS54X MTR547 4 1/2 300 - 40 100 - 180 16 - 22 Side 3 32,8 33,9 (23X23X37) 30 (15 X 2)
7 1/2 627 AUL-LS62X MTR627 4 1/2 180 - 40 100 - 200 16 - 22 Side 3 30 31,1 (22X22X37) 30 (15 X 2)
6 3/4 117 AUL-LS11TG SLHP117 3 1/2 180 - 40 50 - 140 9,5-12 Side 3 18,5 19,2 (19X19X31) 48 (24 X 2)
6 3/4 211 V-CL21 STD211 3 1/2 600 - 40 60 - 150 9,5-12 Central 1 14,4 15,1 (19X19X37) 48 (24 X 2)
6 3/4 517 AU-51X SLH517 3 1/2 110 - 40 60 - 140 9,5-12 Side 3 18,7 19,4 (19X19X37) 48 (24 X 2)
6 1/2 121 N-CL12T STD121 3 1/2 300 - 40 40 - 130 9,5-12 Central 1 13,2 13,9 (19X19X37) 48 (24 X 2)
6 1/2 127 AUL-LS12TG SLHP127 3 1/2 280 - 40 60 - 130 9,5-12 Side 3 20 20,7 (20X20X32) 48 (24 X 2)
6 1/2 211 N-CL21 STD211 3 1/2 300 - 40 70 - 170 9,5-12 Central 1 12,6 13,3 (19X19X37) 48 (24 X 2)
6 1/2 217 AUP-LS21TG SLHP217 3 1/2 140 - 40 60 - 140 9,5-12 Side 3 20 20,7 (19X19X32) 48 (24 X 2)
6 1/2 517 AU-L51X SLHP517 3 1/2 110 - 40 60 - 130 9,5-12 Side 3 23 23,7 (19X19X31) 48 (24 X 2)
6 1/4 127 AU-L12TG SLH127 3 1/2 110 - 40 40 - 130 9,5-12 Side 3 17 17,7 (19X19X37) 48 (24 X 2)
6 1/4 211 N-CL21 STD211 3 1/2 300 - 40 70 - 170 9,5-12 Central 1 12,8 13,5 (19X19X37) 48 (24 X 2)
6 1/4 512 V-ALS51Y AIR512 3 1/2 115 - 60 20 - 110 9,5-12 Side 3 18 18,7 (19X19X37) 48 (24 X 2)
6 1/4 537 AU-S53X SLH537 3 1/2 110 - 40 70 - 140 9,5-12 Side 3 21 21,7 (20X20X32) 48 (24 X 2)
6 1/4 612 V-ALS61Y AIR612 3 1/2 115 - 60 50 - 130 9,5-12 Side 3 18,3 19 (19X19X37) 48 (24 X 2)
6 1/8 117 AUL-LS11TGP SLHP117 3 1/2 300 - 40 40 - 120 9,5-12 Side 3 17 17,7 (20X20X31) 48 (24 X 2)
6 1/8 135 NU-L13TG SLH135 3 1/2 300 - 40 50 - 140 9,5-12 Side 3 17 17,7 (20X20X32) 48 (24 X 2)
6 1/8 211 N-CL21 STD211 3 1/2 300 - 40 50 - 120 9,5-12 Central 1 11 11,3 (20X20X32) 48 (24 X 2)
6 1/8 215 NU-L21G SLH215 3 1/2 300 - 40 70 - 160 9,5-12 Side 3 17 17,7 (20X20X32) 48 (24 X 2)
6 1/8 437 AUL-LS43X SLHP437 3 1/2 300 - 40 40 - 120 9,5-12 Side 3 17 17,7 (20X20X32) 48 (24 X 2)
6 1/8 447 AUL-LS44XP SLHP447 3 1/2 300 - 40 40 - 120 9,5-12 Side 3 17 17,7 (20X20X31) 48 (24 X 2)
6 1/8 517 AUL-LS51X SLHP517 3 1/2 300 - 40 50 - 120 9,5-12 Side 3 17 17,7 (19X19X37) 48 (24 X 2)
6 1/8 527 AUL-LSP52Y SLHP527 3 1/2 300 - 40 50 - 120 9,5-12 Side 3 17 17,7 (20X20X31) 48 (24 X 2)
6 1/8 537 AUP-LS53XF SLHP537 3 1/2 140 - 40 70 - 140 9,5-12 Side 3 15,9 16,6 (19X19X37) 48 (24 X 2)
6 1/8 547 AUL-LS54XP SLHP547 3 1/2 300 - 40 80 - 150 9,5-12 Side 3 16 16,7 (20X20X31) 48 (24 X 2)
6 1/8 617 AUL-LS61XGD SLHP617 3 1/2 300 - 40 80 - 160 9,5-12 Side 3 17 17,7 (20X20X31) 48 (24 X 2)
6 1/8 627 AUL-LS62XE SLHP627 3 1/2 300 - 40 80 - 160 9,5-12 Side 3 17 17,7 (20X20X31) 48 (24 X 2)
6 1/8 637 AUP-LS63Y SLHP637 3 1/2 140 - 40 80 - 160 9,5-12 Side 3 16 16,7 (19X19X37) 48 (24 X 2)
6 127 AUL-LS12TG SLHP127 3 1/2 300 - 40 40 - 120 9,5-12 Side 3 13,7 14,4 (17X17X31) 48 (24 X 2)
6 215 NU-L21G SLH215 3 1/2 300 - 40 70 - 160 9,5-12 Side 3 13,8 14,5 (16X16X34) 48 (24 X 2)
6 217 AUP-L21G SLHP217 3 1/2 140 - 40 70 - 160 9,5-12 Side 3 13,5 14,3 (17X17X31) 48 (24 X 2)
6 321 N-L32 STD321 3 1/2 300 - 40 90 - 170 9,5-12 Side 3 14,1 14,8 (19X19X37) 48 (24 X 2)
6 437 AUP-LS43X SLHP437 3 1/2 140 - 40 40 - 120 9,5-12 Side 3 13,2 13,9 (16X16X34) 48 (24 X 2)
6 447 AUP-LSD44XWDF SLHP447 3 1/2 140 - 40 40 - 120 9,5-12 Side 3 13,5 14,2 (16X16X34) 48 (24 X 2)
6 517 AUL-LS51X SLHP517 3 1/2 180 - 40 50 - 120 9,5-12 Side 3 14,5 16,8 (19X19X37) 48 (24 X 2)
6 517 AUP-LS51XE SLHP517 3 1/2 140 - 40 50 - 120 9,5-12 Side 3 16 16,7 (17X17X31) 48 (24 X 2)
6 537 AUL-LS53XP SLHP537 3 1/2 180 - 40 50 - 120 9,5-12 Side 3 14 14,7 (17X17X34) 48 (24 X 2)
6 547 AUP-LS54Y SLHP547 3 1/2 140 - 40 50 - 140 9,5-12 Side 3 14,4 15,3 (17X17X34) 48 (24 X 2)
6 612 N-A61Y AIR612 3 1/2 115 - 60 50 - 140 9,5-12 Side 3 16,2 16,9 (19X19X37) 48 (24 X 2)
6 637 AUP-LS63Y SLHP637 3 1/2 140 - 40 80 - 160 9,5-12 Side 3 13,7 14,4 (16X16X34) 48 (24 X 2)
5 7/8 117 AUP-LS11TG SLHP117 3 1/2 140 - 40 40 - 120 9,5-12 Side 3 14 14,7 (20X20X32) 72 (24 X 3)
5 7/8 121 N-L12 STD121 3 1/2 300 - 40 40 - 120 9,5-12 Side 3 13,6 14,5 (17X17X31) 72 (24 X 3)
5 7/8 134 NU-L13T SLH134 3 1/2 300 - 40 70 - 150 9,5-12 Side 3 15 15,7 (19X19X32) 72 (24 X 3)
5 7/8 211 N-L21 STD211 3 1/2 300 - 40 70 - 160 9,5-12 Side 3 13,5 14,4 (17X17X31) 72 (24 X 3)
5 7/8 214 NU-L21 SLH214 3 1/2 300 - 40 20 - 140 9,5-12 Side 3 15 15,7 (19X19X32) 72 (24 X 3)
5 7/8 217 AUP-L21G SLHP217 3 1/2 140 - 40 70 - 160 9,5-12 Side 3 13,3 14,2 (17X17X31) 72 (24 X 3)
5 7/8 437 AUP-LS43X SLHP437 3 1/2 140 - 40 40 - 110 9,5-12 Side 3 13,4 14,3 (17X17X31) 72 (24 X 3)
5 7/8 447 AUP-LS44X SLHP447 3 1/2 140 - 40 40 - 120 9,5-12 Side 3 13,5 14,4 (17X17X31) 72 (24 X 3)
5 7/8 512 N-A51Y AIR512 3 1/2 115 - 60 20 - 100 9,5-12 Side 3 6,4 7,3 (17X17X31) 72 (24 X 3)
5 7/8 517 AUP-LS51X SLHP517 3 1/2 140 - 40 50 - 120 9,5-12 Side 3 15 15,9 (16X16X29) 72 (24 X 3)
5 7/8 517 AUP-RLSD51XWDGDF SLHP517 3 1/2 300 - 40 20 - 110 9,5-12 Side 3 14,2 15,1 (17X17X31) 72 (24 X 3)
5 7/8 537 AUP-LS53X SLHP537 3 1/2 140 - 40 70 - 130 9,5-12 Side 3 14,1 15 (17X17X31) 72 (24 X 3)
5 7/8 547 AUL-LS54XP SLHP547 3 1/2 300 - 40 80 - 140 9,5-12 Side 3 15 15,7 (19X19X32) 72 (24 X 3)
5 7/8 547 AUL-LS54XW SLHP547 3 1/2 300 - 40 80 - 140 9,5-12 Side 3 15 15,7 (19X19X32) 72 (24 X 3)
5 7/8 612 N-A61Y AIR612 3 1/2 115 - 60 40 - 120 9,5-12 Side 3 14,2 15 (17X17X31) 72 (24 X 3)
5 7/8 622 N-AC62X AIR622 3 1/2 115 - 60 50 - 140 9,5-12 Central 1 11,7 12,5 (17X17X31) 72 (24 X 3)
5 7/8 627 AUP-LS62Y SLHP627 3 1/2 140 - 40 80 - 160 9,5-12 Side 3 14 15,1 (18X18X29) 72 (24 X 3)
5 7/8 617 AUP-LS61X SLHP617 3 1/2 140 - 40 80 - 160 9,5-12 Side 3 15 16,1 (17X17X29) 72 (24 X 3)
5 7/8 617 AUL-LS61X SLHP617 3 1/2 300 - 40 80 - 140 9,5-12 Side 3 15 16,1 (17X17X29) 72 (24 X 3)
5 7/8 637 AUP-LS63Y SLHP637 3 1/2 140 - 40 70 - 130 9,5-12 Side 3 13,9 14,8 (17X17X31) 72 (24 X 3)
5 3/4 547 AUL-LS54YF SLHP547 3 1/2 300 - 40 80 - 140 9,5-12 Side 3 15 15,7 (20X20X32) 72 (24 X 3)
5 3/4 547 AUL-LSP54YF SLHP547 3 1/2 300 - 40 80 - 140 9,5-12 Side 3 15 15,7 (20X20X32) 72 (24 X 3)
5 5/8 437 AUP-LS43X SLHP437 3 1/2 140 - 40 40 - 110 9,5-12 Side 3 12,9 13,6 (16X16X34) 72 (24 X 3)
5 5/8 517 AUP-LS51X SLHP517 3 1/2 140 - 40 50 - 110 9,5-12 Side 3 13 13,7 (16X16X34) 72 (24 X 3)
5 5/8 522 N-ACL52Y AIR522 3 1/2 115 - 60 20 - 100 9,5-12 Central 1 9,2 9,9 (16X16X34) 72 (24 X 3)
5 5/8 547 AUL-LSP54XPF SLHP547 3 1/2 300 - 40 40 - 120 9,5-12 Side 3 13 13,7 (16X16X34) 72 (24 X 3)
5 5/8 632 N-AL63Y AIR632 3 1/2 115 - 60 40 - 120 9,5-12 Side 3 12,8 13,5 (16X16X34) 72 (24 X 3)
5 1/2 231 N-CL23 STD231 3 1/2 300 - 40 70 - 150 9,5-12 Central 1 9,7 10,4 (16X16X34) 72 (24 X 3)
5 1/2 447 AUP-LS44X SLHP447  3 1/2 140 - 40 40 - 110 9,5-12 Side 3 13,5 14,2 (20X20X32) 72 (24 X 3)
5 1/2 547 AUL-LS54X SLHP547 3 1/2 300 - 40 70 - 130 9,5-12 Side 3 13,5 14,2 (20X20X32) 72 (24 X 3)
5 1/4 512 N-AC51Y AIR512 2 7/8 115 - 60 20 - 90 8-9,5 Central 1 6,5 7 (14X14X32) 70 (35 X 2)
5 1/5 741 N-C74 STD741 2 7/8 230 65 8-9,5 Central 1 7,4 7,9 (15X15X32) 70 (35 X 2)
5 1/8 122 N-AC12T AIRS122 2 7/8 115 - 60 20 - 80 8-9,5 Central 1 5,5 5,9 (15X15X27) 70 (35 X 2)
4 7/8 117 AUL-LSP11TPF  SLHP117 2 7/8 300 - 40 30 - 100 8-9,5 Side 3 10,5 11 (15X15X28) 70 (35 X 2)
4 7/8 211 N-CL21 STD211 2 7/8 300 - 40 50 - 130 8-9,5 Central 1 6 6,5 (14X14X32) 70 (35 X 2)
4 7/8 517 AUP-LS51XF SLHP517 2 7/8 140 - 40 40 - 100 8-9,5 Side  3 8,4 8,9 (15X15X26) 70 (35 X 2)
4 7/8 547 AUP-LS54Y SLHP547 2 7/8 140 - 40 70 - 120 8-9,5 Side 3 8,6 9,1 (14X14X32) 70 (35 X 2)
4 3/4 117 AUL-LSP11TGF SLHP117 2 7/8 300 - 40 30 - 100 8-9,5 Side 3 9 9,5 (15X15X28) 70 (35 X 2)
4 3/4 211 N-CL21 STD211 2 7/8 300 - 40 40 - 90 8-9,5 Central 1 5,8 6,2 (15X15X32) 70 (35 X 2)
4 3/4 231 N-CL23 STD231 2 7/8 300 - 40 50 - 110 4-4,8 Central 1 6,2 6,7 (15X15X32) 70 (35 X 2)
4 1/2 211 N-CL21 STD211 2 3/8 300 - 40 30 - 90 4-4,8 Central 1 4,3 4,7 (15X15X32) 70 (35 X 2)
4 1/2 531 N-CL53Y STD531 2 3/8 300 - 40 30 - 90 4-4,8 Central 1 4 4,4 (15X15X32) 70 (35 X 2)
4 1/8 517 AU-LS51X SLH517 2 3/8 110 - 40 40 - 80 4-4,8 Side 3 6 6,5 (16X16X22) 70 (35 X 2)
4 1/8 537 AU-LS53X SLH537 2 3/8 110 - 40 50 - 90 4-4,8 Side 3 5,1 5,6 (16X16X22) 70 (35 X 2)
3 7/8 211 N-CL21 STD211 2 3/8 300 - 40 40 - 100 4-4,8 Central 1 4,3 4,5 (13X13X20) 12 pcs in one carton (27X27X44) cm
3 7/8 531 N-CL53Y STD531 2 3/8 300 - 40 30 - 80 4-4,8 Central 1 3,6 3,8 (13X13X20) 12 pcs in one carton (27X27X44) cm
3 3/4 117 AU-L11GF SLH117 2 3/8 110 - 40 40 - 80 4-4,8 Side 3 5,5 6 (13X13X20) 8 pcs in one carton (23X23X36) cm
3 2/3 743 A-C74Z STD743 2 3/8 100 - 40 60 - 110 4-4,8 Central 1 3,2 3,9 (13X13X20) 4 pcs in one carton (19X19X31) cm
3 743 A-C74Z STD743 3_42 100 - 40 30 - 60 4-4,8 Central 1 1,9 2 (12X12X18) 17 pcs in one carton (24X24X39) cm



-  PDC bits.

PDC bits
- Downhole drilling motors.

ВЗД Downhole Motor
- Six-blade bits, screw conveyors.

- Hard metal bits (button bits, сore bit, TC tapered, drifting , DTH hammer bits) such as СМ, СА, К, КА, М etc.

Коронка ККоронка КНШ       Коронка буровая твердосплавная16_koronki_bkrsh

- Tool joints, adapters.

- Boring pipes and casings.

- Repair parts for drilling equipment produced in Russia and abroad.


We make nonstandard equipment by the drawings and TU of the customer.
We supply domestic and foreign drilling equipment.
We’d be glad to consider offers for cooperation in the above mentioned fields.

We have already carried out the supply of equipment to countries such as Cuba, Vietnam, Turkey, Pakistan, Iran, Estonia, Latvia, Czech Republic and other.


Address for correspondence:

195279, Russia, Sankt-Petersburg, Revolution hw. 69-102



Tel./Fax: +7 812 301 94 12, +7(812)303-92-48 (Russian and English)



Your request, you can send us an email: info@uralburmash.ru

Best regards,

Download description and range of oil and gas drilling bits:
A Line, AU LineAUL LineAUM LineAUP Line, N LineNU Line, V LineVU Line.

Download description and range of maining drilling bits:
AUL Line, N LineV Line.

Download Catalogue Drill Bits MS Word:

Part 1

Part 2

Строительный портал: каталог строительных компаний, каталог строительных товаровр

Новости

09.08.2019
Пикобуры для бурения на воду
пикобуры_1 подробнее... 09.08.2019
Долото 393,7 С-ЦВ
393,7 СЦВ_1 подробнее... 09.08.2019

Всегда в наличии:
Долота двухшарошечные
II 112 мм и II 132 мм

двушки 112 и 132

подробнее... 09.08.2019

В наличии долота PDC для бурения на воду.

Доступные диаметры: 93 мм, 112 мм, 151 мм,155,6 мм,

PDC на воду

подробнее... 31.01.2019

Всегда в наличии инструмент для КРС: Долота 93мм, 98,4мм, 112мм, 120,6мм, 132мм. 139,7мм, 146мм....

76 Фрезерованное

подробнее...
сегодня %D, %d %M %y года
время: %h~:~%m
Рейтинг@Mail.ru Rambler's Top100 Спецкаталог
Электронный Бизнес-Каталог Spravka.ua top.dp.ru Web100kz.com - каталог сайтов Тендер Про — электронная торговая B2B площадка, компания Уралбурмаш-Трейд Портал Speceria.ru: техника, спецтехника, коммерческий транспорт Каталог Строительных Фирм Строительство
